Apollo Bronze Ball Valves
บอลวาล์วทองเหลืองบรอนซ์ Apollo

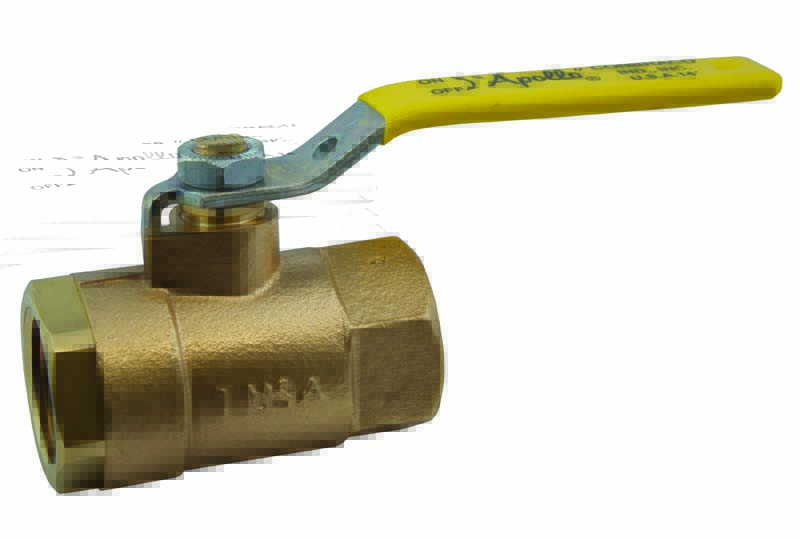

Apollo: 32-100 Series
Regular Port Bronze Ball Valve
125 psi. SWP,   400 psi. WOG

Apollo 32-100 Bronze Ball Valve
  • Size: 1/4" - 2" Threaded NPT
  • Max Operating Pressure:
    • 400 psig WOG, Cold Non-Shock
    • 125 psig Saturated Steam
    • Vacuum Service to 29 inches Hg.
  • Material Body : Bronze
  • Features:
    • Adjustable Packing Gland
    • Blow-out-proof Stem Design
    • FE Seats and RPTFE Stem Packing
    • Chromium Plated Ball
    • 100% Factory Tested
  • pdf

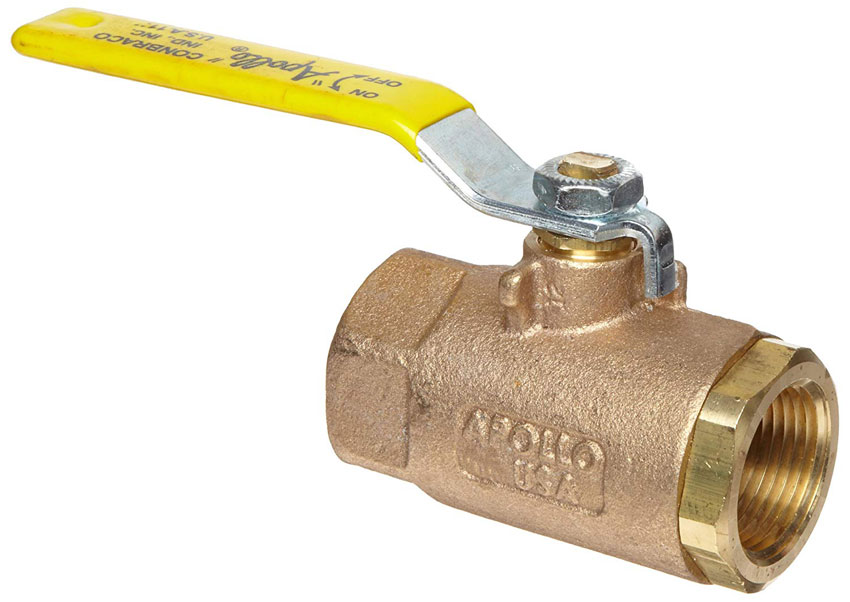

Apollo: 70-100 Series
Bronze Ball Valve
150 psi. SWP,   600 psi. WOG

Apollo 70-100 Bronze Ball Valve
  • Size: 1/4" - 2" Threaded NPT
  • Max Operating Pressure:
    • 600 psig WOG, Cold Non-Shock
    • 150 psig Saturated Steam
    • Vacuum Service to 29 inches Hg.
  • Material Body : Bronze
  • Features:
    • Blow-out-proof Stem Design
    • Reinforced Seat
    • Adjustable Packing Gland
  • Option:
    • 70-100-07 : Steel Tee Handle
    • 70-100-08 : 90 Degree Reversed Stem
    • 70-100-10 : SS Lever & Nut
    • 70-100-14 : Vented Ball
    • 70-100-27 : SS Latch Lock Lever & Nut
    • 70-100-41 : Automatic Drain
    • 70-100-50 : 2.1/4” SS Stem Extension
  • pdf

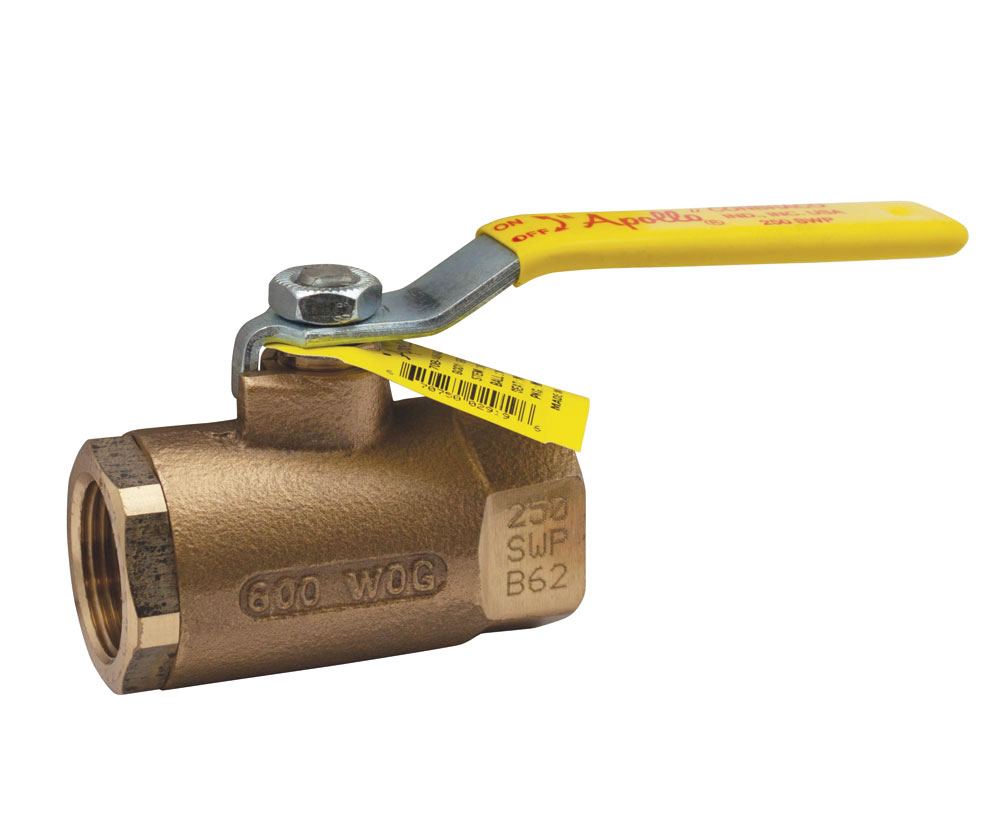

Apollo: 70-140-64 Series
Bronze Ball Valve
250 psi. SWP,   600 psi. WOG

Apollo 70B-140-64 Bronze Ball Valve
  • Size: 1/4" - 3" Threaded NPT
  • Max Operating Pressure:
    • 600 psig WOG, Cold Non-Shock
    • 250 psig Saturated Steam
    • Vacuum Service to 29 inches Hg.
  • Material Body : Bronze
  • Features:
    • 316 SS Ball & Stem
    • Multifill Seat
    • Multifill Stuffing Box Ring
    • Blow-out-proof Stem Design
    • Adjustable Packing Gland
  • pdf

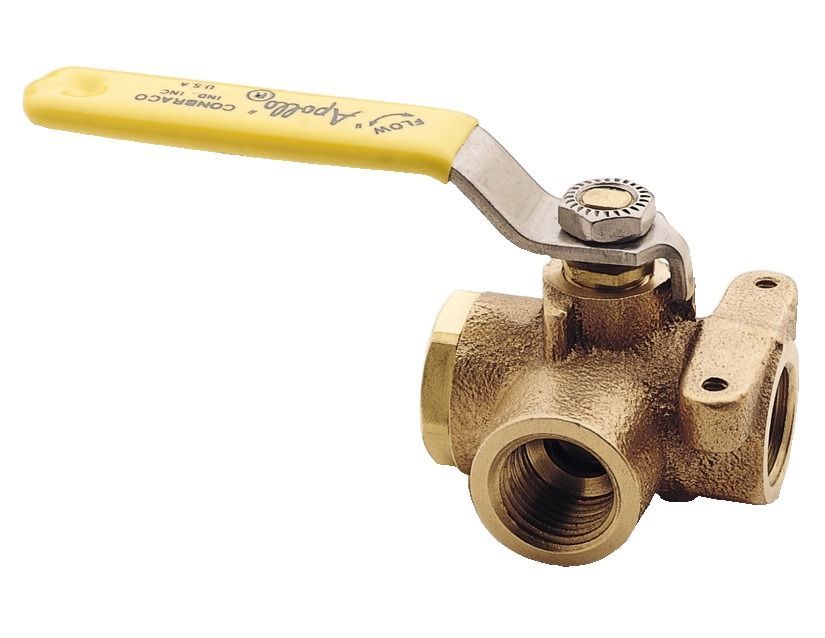

Apollo: 70-600 Series
3-way Bronze Ball Valve
400 psi. WOG, Cold Non-Shock

Apollo 70-600 3-way Bronze Ball Valve
  • Size: 1/4" - 2" Threaded NPT
  • Max Operating Pressure:
    • 400 psig WOG, Cold Non-Shock
  • Material Body : Bronze
  • Features:
    • Blow-out-proof Stem Design
    • Reinforced Seat
    • Adjustable Packing Gland
  • pdf

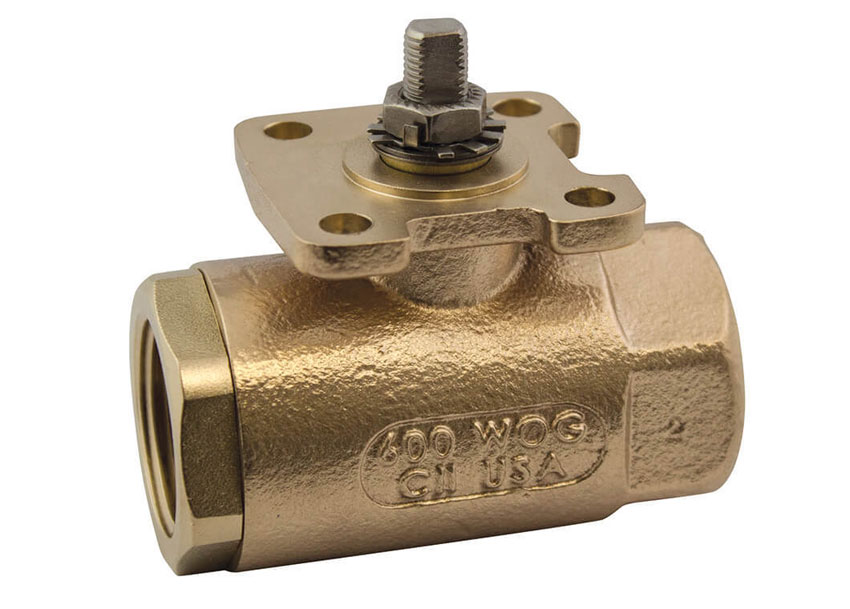

Apollo: 71-ARX Series
Bronze Actuator Ready Ball Valve
250 psi. SWP,   600 psi. WOG

Apollo 71-ARX Bronze Actuator Ready Ball Valve
  • Size: 3/4" - 3" Threaded NPT
  • Max Operating Pressure:
    • 600 psig WOG, Cold Non-Shock
    • 250 psig Saturated Steam
    • Vacuum Service to 29 inches Hg.
  • Material Body : Bronze
  • Features:
    • ISO 5211 Mounting Pad
    • 316 SS Ball & Stem
    • Multifill Seat
    • Multifill Stuffing Box Ring
    • Blow-out-proof Stem Design
    • Adjustable Packing Gland
  • pdf

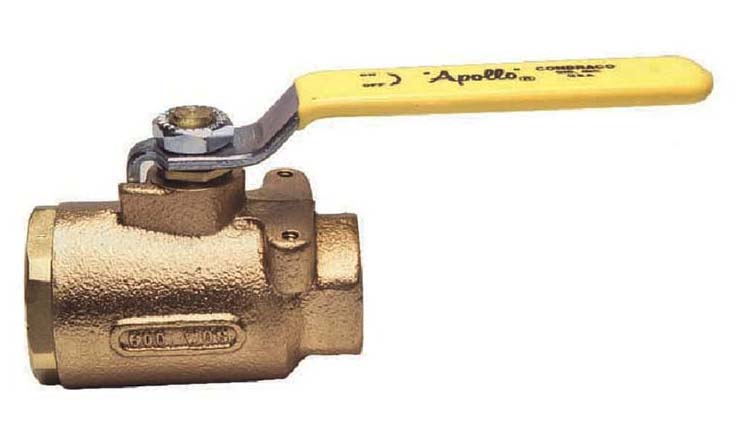

Apollo: 77-100 Series
Bronze Full Port Ball Valve
150 psi. SWP,   600 psi. WOG

Apollo 77-100 Bronze Full Port Ball Valve
  • Size: 1/4" - 2-1/2" Threaded NPT
  • Max Operating Pressure:
    • 600 psig WOG, Cold Non-Shock
    • 150 psig Saturated Steam
    • Vacuum Service to 29 inches Hg.
  • Material Body : Bronze
  • Features:
    • Two Piece Body
    • Full Port for Full Flow & Min. Pressure Drop
    • Reinforced Seat
    • Mounting Pad for Easy Actuator Mounting
    • Blow-out-proof Stem Design
    • Adjustable Packing Gland
  • pdf

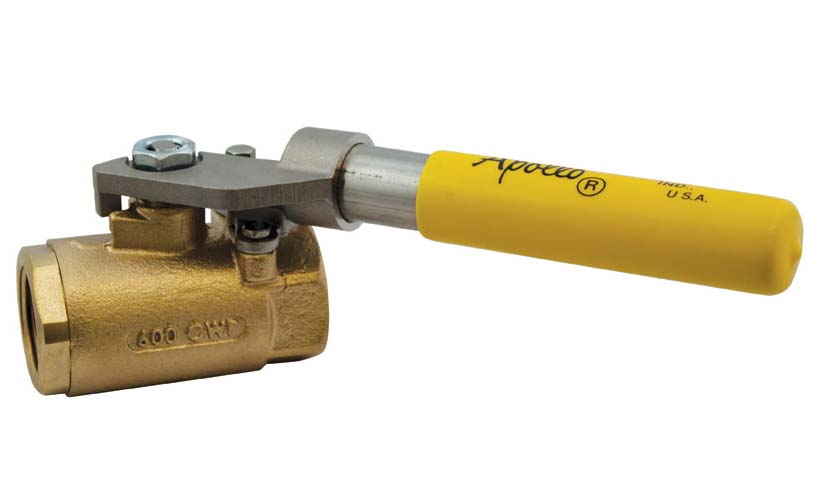

Apollo: 71-500 Series
Bronze Ball Valve w/Spring Return Handle
150 psi. SWP,   600 psi. WOG

Apollo Bronze Ball Valve w/Spring Return Handle
  • Size: 1/4" - 2" Threaded NPT
  • Max Operating Pressure:
    • 600 psig WOG, Cold Non-Shock
    • 150 psig Saturated Steam
    • Vacuum Service to 29 inches Hg.
  • Material Body : Bronze
  • Features:
    • Spring Return To Close or Open
    • All components of lever are SS
    • Operating Torque is Approximately 3-Times Standard Valve Torque
    • Reinforced Seat
    • Blow-out-proof Stem Design
    • Adjustable Packing Gland
  • pdf

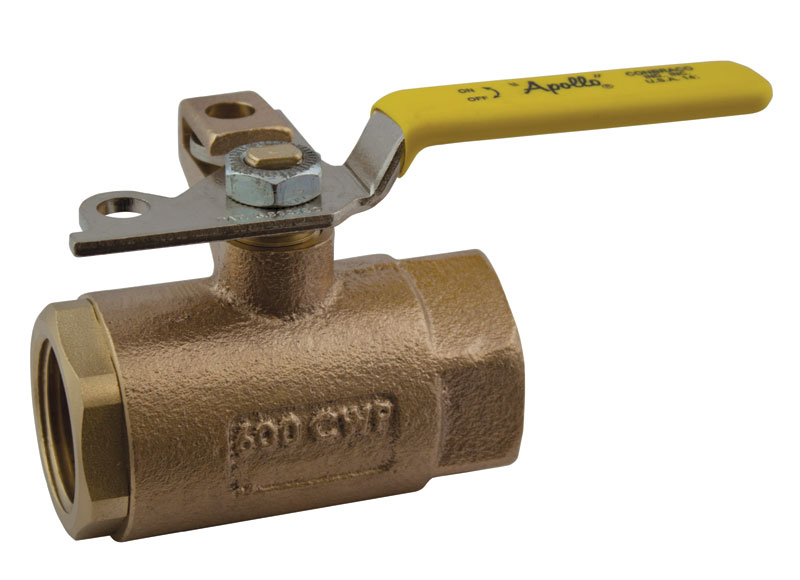

Apollo: 75-100 Series
Apollo Bronze Pad Locking Ball Valve
150 psi. SWP,   600 psi. WOG

Apollo Bronze Pad Locking Ball Valvee
  • Size: 1/4" - 2" Threaded NPT
  • Max Operating Pressure:
    • 600 psig WOG, Cold Non-Shock
    • 150 psig Saturated Steam
    • Vacuum Service to 29 inches Hg.
  • Material Body : Bronze
  • Features:
    • Reinforced Seat
    • Blow-out-proof Stem Design
    • Large Ports to Reduce Pressure Drop
    • May be padlocked in open or closed position with no change of hardware
    • Two Piece Bronze Body
    • Adjustable Packing Gland
  • pdf

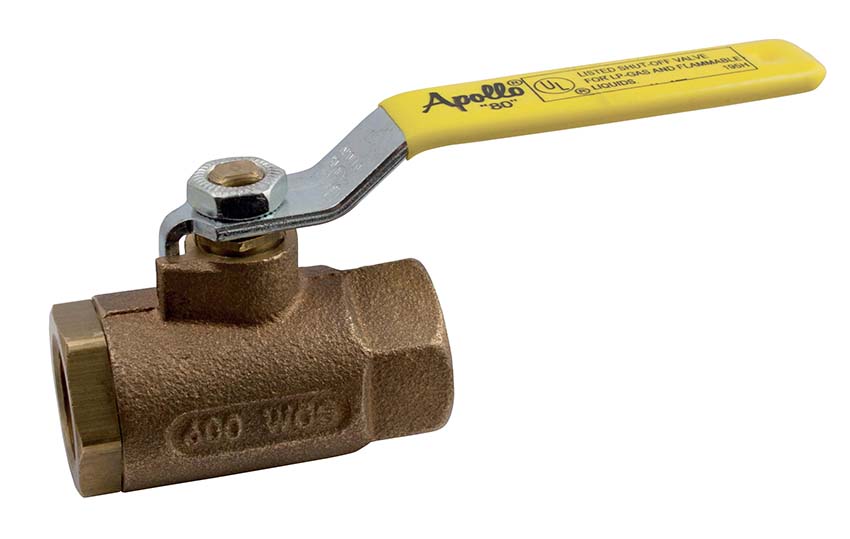

Apollo: 80-100 Series
UL Listed Bronze LP Gas Ball Valve
250 psi. LP Gas,   150 SWP,   600 WOG

Apollo UL Listed Bronze LP Gas Ball Valve
  • Size: 1/4" - 3" Threaded NPT
  • Max Operating Pressure:
    • 600 psig WOG, Cold Non-Shock
    • 250 psig LP Gas
    • 150 psig Saturated Steam
    • Vacuum Service to 29 inches Hg.
  • Material Body : Bronze
  • Features:
    • UL Listed for LP-Gas, Natural Gas, Flammable Liquid and Heated Oil
    • Large Ports to Reduce Pressure Drop
    • Two Piece Bronze Body
    • Reinforced Seat
    • Blow-out-proof Stem Design
    • Adjustable Packing Gland
  • pdf

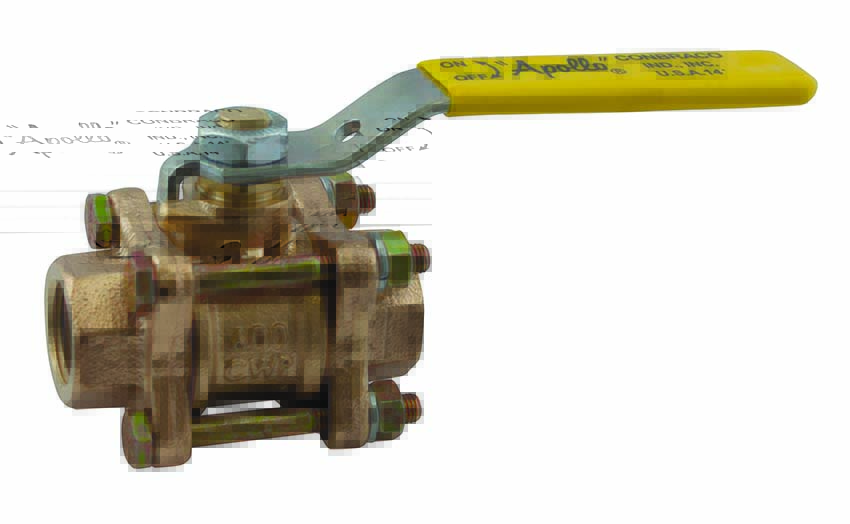

Apollo: 82-100 Series
Bronze 3-Piece Full Port Ball Valve
150 psi. SWP,   600 psi. WOG

Apollo Bronze 3-Piece Full Port Ball Valve
  • Size: 1/4" - 4" Threaded NPT
  • Max Operating Pressure:
    • 600 psig WOG, Cold Non-Shock
    • 150 psig Saturated Steam
    • Vacuum Service to 29 inches Hg.
  • Material Body : Bronze
  • Features:
    • Full Port Ball Configuration
    • Inline Repairable
    • Reinforced Seat
    • Blow-out-proof Stem Design
    • Adjustable Packing Gland
  • pdf

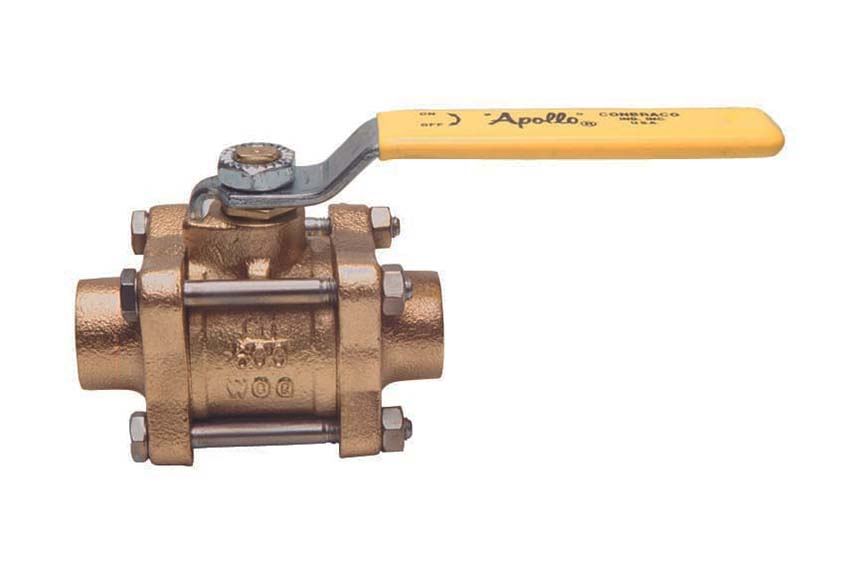

Apollo: 82-200 Series
Bronze 3-Piece Full Port Ball Valve
150 psi. SWP,   600 psi. WOG

Apollo Bronze 3-Piece Full Port Ball Valve
  • Size: 1/4" - 4" Solder End
  • Max Operating Pressure:
    • 600 psig WOG, Cold Non-Shock
    • 150 psig Saturated Steam
    • Vacuum Service to 29 inches Hg.
  • Material Body : Bronze
  • Features:
    • Full Port Ball Configuration
    • Inline Repairable
    • Reinforced Seat
    • Blow-out-proof Stem Design
    • Adjustable Packing Gland
  • pdf
