Stainless Steel Sample Cooler
อุปกรณ์เก็บตัวอย่างน้ำจาก Steam Boiler



ADCA: SC32/SS – SC132/SS
Stainless Steel Sample Cooler
Body:20 bar, Coil:110 bar.

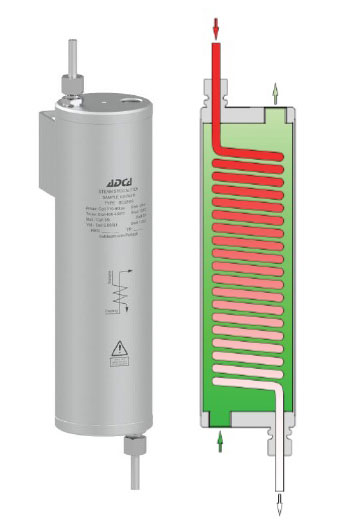

ADCA SC32/SS Sample Cooler
  • Type:
    • SC32/SS
    • SC132/SS (ตัวยาว)
  • Size & Connections:
    • Cooling Water In/Out: 1/2" Screwed BSP or NPT
    • Sample In/Out 8 mm. O/D
  • Materials:
    • Body: AISI 304 / 1.4301
    • Cover: AISI 304 / 1.4301
    • Coil: AISI 316L / 1.4404
  • Limiting Conditions:
    • Body: 20 bar, 120°C
    • Coil: 110bar, 400°C
  • pdf

ADCA: SC32B/SS, SC132B/SS
Stainless Steel Sample Cooler
Body:20 bar, Coil:110 bar.

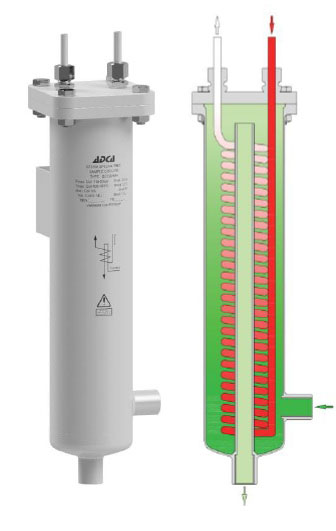

ADCA SC32B SC132B Sample Cooler
  • Type: Bolted Cover
    • SC32B/SS
    • SC132B/SS (ตัวยาว)
  • Size & Connections:
    • Cooling Water In/Out: 1/2" Screwed BSP or NPT
    • Sample In/Out 8 mm. O/D
  • Materials:
    • Body: AISI 304 / 1.4301
    • Cover: AISI 304 / 1.4301
    • Coil: AISI 316L / 1.4404
  • Limiting Conditions:
    • Body: 20 bar, 120°C
    • Coil: 110bar, 400°C
  • pdf

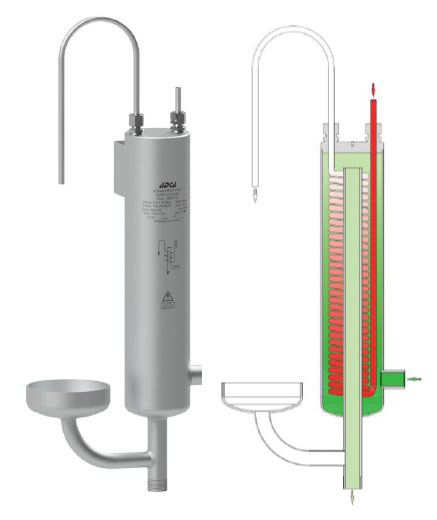

ADCA: SC32F/SS, SC132F/SS
Stainless Steel Sample Cooler
Body:20 bar, Coil:110 bar.

ADCA SC32B SC132B Sample Cooler
  • Type:
    • SC32F/SS
    • SC132F/SS (ตัวยาว)
  • Size & Connections:
    • Cooling Water In: 1/2" Screwed BSP or NPT
    • Cooling Water Out: 3/4" Screwed BSP or NPT
    • Sample In/Out 8 mm. O/D
  • Materials:
    • Body: AISI 304 / 1.4301
    • Cover: AISI 304 / 1.4301
    • Coil: AISI 316L / 1.4404
  • Limiting Conditions:
    • Body: 20 bar, 120°C
    • Coil: 110bar, 400°C
  • pdf

ADCA: SC332/SS, SC432/SS, SC532/SS
Stainless Steel Sample Cooler
Body:20 bar, Coil:up to 280 bar.

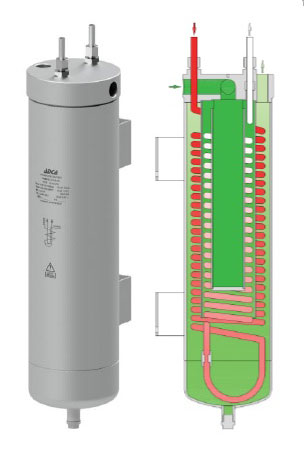

ADCA SC332 SC432 SC532 Sample Cooler
  • Type:
    • SC332/SS
    • SC332H/SS (high Pressure)
    • SC432/SS
    • SC432H/SS (high Pressure)
    • SC532F/SS
    • SC532H/SS (high Pressure)
  • Size & Connections:
    • SC332:
      Cooling Water In/Out: 1/2" BSP or NPT
      Sample In/Out: 10 mm. O/D
    • SC432, SC532:
      Cooling Water In/Out: 3/4" BSP or NPT
      Sample In/Out: 10 mm. O/D
  • Materials:
    • Body: AISI 304 / 1.4301
    • Cover: AISI 304 / 1.4301
    • Coil: AISI 316L / 1.4404
  • Limiting Conditions:
    • Body: 20 bar, 120°C
    • Coil: 110bar, 400°C
  • pdf

ADCA: SC32P, SC32PP
Clean Steam Sample Cooler (SS316L)
Body:20 bar, Coil:110 bar.

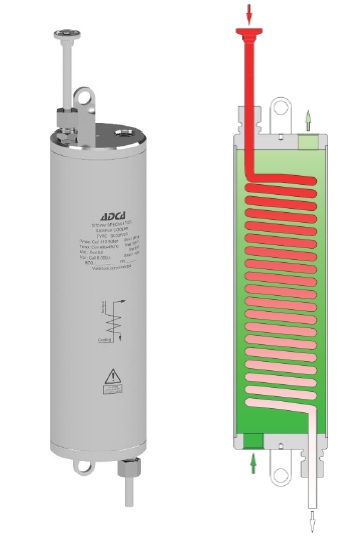

ADCA SC32P Clean Steam Sample Cooler
  • Type:
    • SC32P
    • SC32PP (Portable)
  • Size & Connections:
    • Cooling Water In/Out:
      1/2" BSP or NPT or
      3/4" Tri-Clamp
    • Sample In/Out: 8 mm. O/D
  • Materials:
    • Body: AISI 316L / 1.4404
    • Cover: AISI 316L / 1.4404
    • Coil: AISI 316L / 1.4404
  • Limiting Conditions:
    • Body: 20 bar, 120°C
    • Coil: 110bar, 400°C
  • pdf

ADCA: SC32P, SC32PP
Clean Steam Sample Cooler (SS316L)
Body:20 bar, Coil:110 bar.

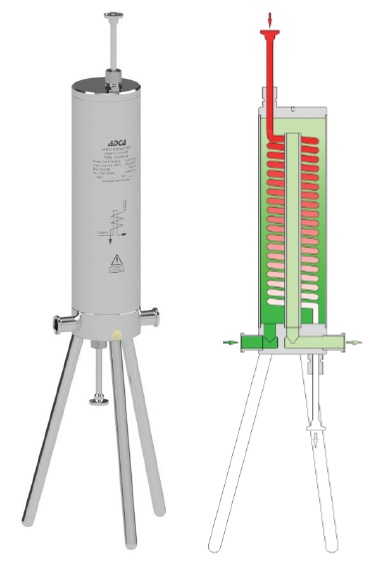

ADCA SC32PP Clean Steam Sample Cooler
