Water Pressure Reducing Valve
วาล์วลดความดันน้้ำ

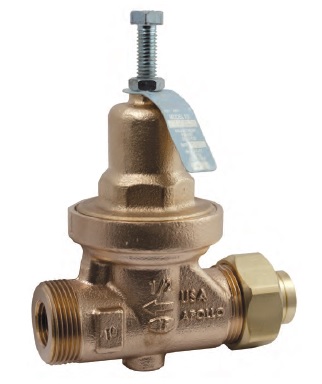

Apollo: 36 Series
Water Pressure Reducing Valve
Max. Inlet: 400 psig

Apollo 36 Series Water Pressure Reducing Valve
  • Size: 1/2" to 2"
  • Connections: NPT, Solder, PEX, CPVC
  • Body Materials: Bronze, ASTM B584
  • Max Supply Pressure: 400 psig.
  • Working Temperature Range:
    • 33°F - 180°F.
    • 0.6°C - 82°C
  • Set Pressure Range:
    • 10 - 35 psig.
    • 25 - 75 psig.
    • 75 - 125 psig.
  • pdf

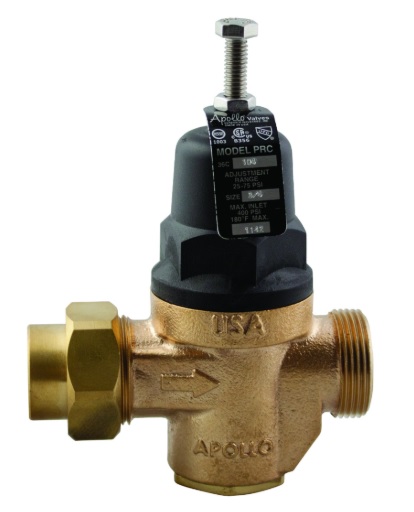

Apollo: 36C Series
Water Pressure Reducing Valve
Max. Inlet: 400 psig

Apollo 36C Series Water Pressure Reducing Valve
  • Size: 1/2", 3/4", 1"
  • Connections: NPT, Solder, PEX, CPVC
  • Body Materials: Bronze, ASTM B584
  • Max Supply Pressure: 400 psig.
  • Working Temperature Range:
    • 33°F - 180°F.
    • 0.6°C - 82°C
  • Set Pressure Range:
    • 10 - 35 psig.
    • 25 - 75 psig.
    • 75 - 125 psig.
  • pdf

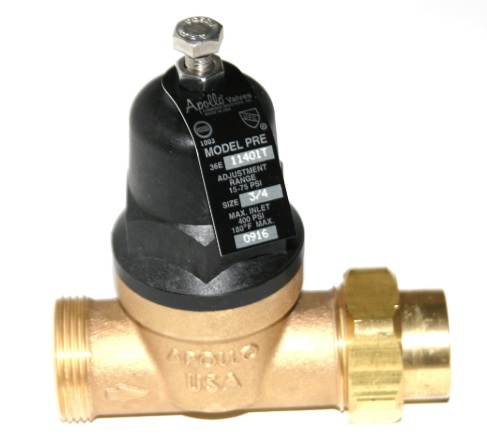

Apollo: 36E Series
Water Pressure Reducing Valve
Max. Inlet: 400 psig

Apollo 36E Series Water Pressure Reducing Valve
  • Size: 1/2", 3/4", 1"
  • Connections: NPT, Solder, PEX, CPVC
  • Body Materials: Bronze, ASTM B584
  • Max Supply Pressure: 400 psig.
  • Working Temperature Range:
    • 33°F - 180°F.
    • 0.6°C - 82°C
  • Set Pressure Range:
    • 15-75 psig.
    • 75 -150 psig.
  • pdf

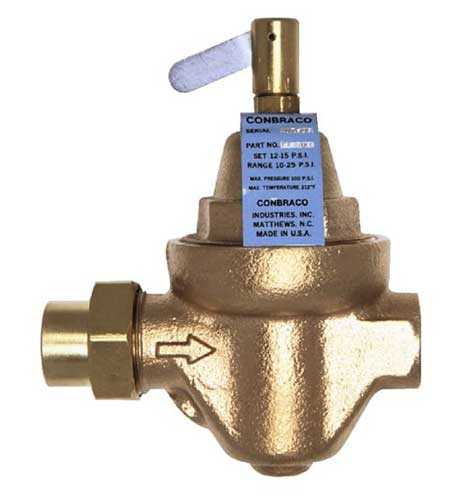

Apollo: 35 Series
Water Pressure Reducing Valve
Max. Working: 100 psig

Apollo 35 Series Water Pressure Reducing Valve
  • Size: 1/2"
  • Connections: NPT, Solder
  • Body Materials: Bronze, ASTM B584
  • Max Working Pressure: 100 psig.(6.9 bar)
  • Max Working Temperature:
    • 210°F. (98.8°C)
  • Set Pressure Range:
    • 10 - 25 psig.
    • 68.7 -172.4 kPa.
  • pdf
