Float Valve, Standard & Hi-Temp Model
วาล์วลูกลอย รุ่นมาตรฐาน และ รุ่นทนอุณหภูมิสูง

Float Valve ทองเหลือง


คำแนะนำ ในการเลือก Disc และ Cup
การใช้งาน Buna-N Viton® Teflon®
อุณหภูมิสูงสุด 82°C / 180°F 232°C / 450°F 288°C / 550°F
อุณหภูมิต่ำสุด 1.7°C / 35°F -42.7°C / -45°F -51°C / -60°F

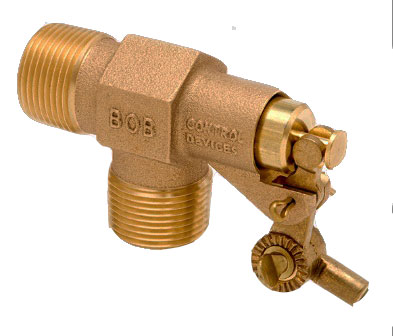

BOB: R400, R400V (Hi-Temp)
Float Valve
High Capacity - Heavy Duty

BOB R400 & R400V Float Valve
  • Body Material: Heavy Duty Cast Brass (Red Brass)
  • Valve Size: 3/8" to 1"
  • Connection: Thread NPT
  • Valve Seal (Disc & Cup):
    • Standard: Nitrile Seal (Buna-N)
    • Optional: Viton® Seal (Hi-Temp)
  • pdf

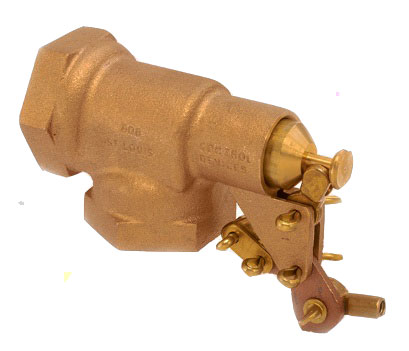

BOB: R600, R600V (Hi-Temp)
Float Valve
High Capacity - Heavy Duty

BOB R600 Series Float Valve
  • Body Material: Heavy Duty Cast Brass (Red Brass)
  • Valve Size: 1/2" to 2"
  • Connection: Thread NPT
  • Valve Seal (Disc & Cup):
    • Standard: Nitrile Seal (Buna-N)
    • Optional: Viton® Seal (Hi-Temp)
  • pdf

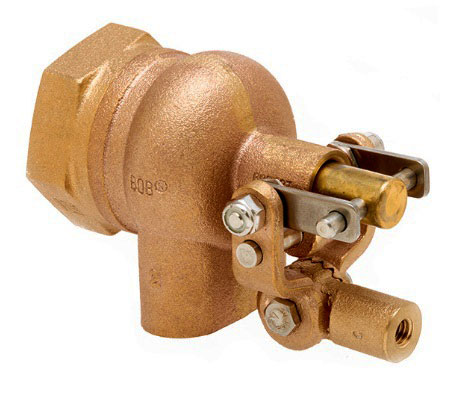

BOB: R605T, R605TV (Hi-Temp)
High Turbo Float Valve
High Capacty - Heavy Duty

BOB R605T High Turbo Float Valve
  • Body Material: Heavy Duty Cast Brass (Red Brass)
  • Valve Size: 1/2" to 2"
  • Connection: Thread NPT / Free Flow
  • Valve Seal (Disc & Cup):
    • Standard: Nitrile Seal (Buna-N)
    • Optional: Viton® Seal (Hi-Temp)
  • pdf

SS 316 Float Valve

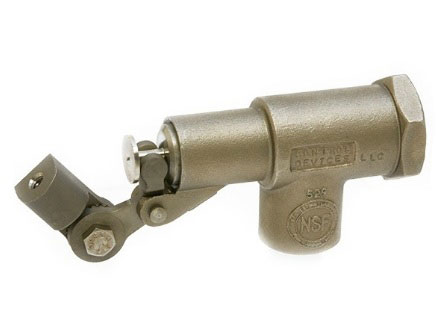

BOB: R1350, R1351
SS316 Float Valve
High Capacity - Heavy Duty

BOB R1350 & R1351 Stainless Steel Float Valve
  • Body Material: Cast AISI 316 Stainless Steel
  • Valve Size: 3/8" to 3/4"
  • Connection: Thread NPT
  • Valve Seal (Disc & Cup):
    • R1350: Viton® Seal
    • R1351: Teflon® Seal (Hi-Temp)
  • pdf

BOB: R1370, R1371
SS 316 Float Valve
High Capacity - Heavy Duty

BOB R1370 & R1371 Stainless Steel Float Valve
  • Body Material: Heavy Duty Cast Brass (Red Brass)
  • Valve Size: 1" x 3/4"
  • Connection: Thread NPT
  • Valve Seal (Disc & Cup):
    • R1370: Viton® Seal
    • R1371: Teflon® Seal (Hi-Temp)
  • pdf

BOB: R1380, R1381
SS316 Float Valve
High Capacty - Heavy Duty

BOB R1380 & R1381 Stainless Steel Float Valve
  • Body Material: Heavy Duty Cast Brass (Red Brass)
  • Valve Size: 1-1/4" to 2"
  • Connection: Thread NPT
  • Valve Seal (Disc & Cup):
    • R1380: Viton® Seal
    • R1381: Teflon® Seal (Hi-Temp)
  • pdf
THESE MODELS ARE IDEAL FOR APPLICATIONS WHERE CAUSTIC FLUIDS ARE USED OR WHERE SANITATION IS A CONCERN. FEATURES INCLUDE NSF LISTING, AN ADJUSTABLE SHORT ARM FOR CUSTOMIZING WATER LEVEL.

BOB:
Float Valve Assembly

BOB Float Valve Assembly

BOB:
Valve / Float Assembly

BOB Valve Float Assembly

BOB:

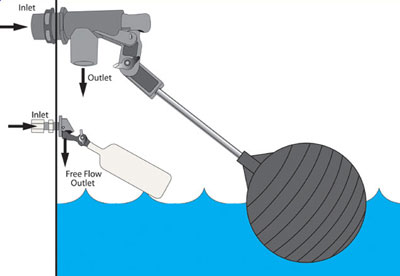

Float Valve Installation

BOB Valve Float Installation
