Float Valve

bob

r400

r605

Model R400 / R400V (click เพื่อดูรายละเอียด)

3/8", 1/2", 3/4", or 1" Male Inlet / Outlet

Adjusting Arm Tapped 1/4"-20 Thread

High Capacity - Heavy Duty

Body : Red Brass Body

Disc   : Buna-N and Teflon (Hi-Temp. 550 F)

pdf

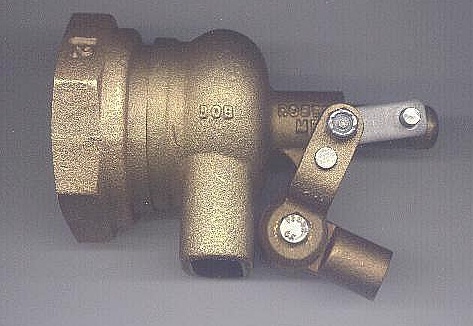

Model R605T "High Turbo" (click เพื่อดูรายละเอียด)

1.1/4" thru 2" Female Inlet / Free Flow Outlet

Applications for High Surface Turbulence

Adjusting Short Arm

Extra Heavy Duty

Body  : Red Brass

Disc   : Teflon (Hi-Temp. 550 F)

pdf

1350 1380
Model R1350 / R1351 (click เพื่อดูรายละเอียด)

3/8" to 3/4" Female Inlet and Outlet

Adjusting Arm Tapped 1/4"-20 Thread

High Capacity - Heavy Duty

Body  : AISI Grade 316 Stainless Steel

R1350 with Disc and Cup made of Viton®

R1351 with Disc and Cup made of Teflon®

pdf

Model R1380 / R1381 (click เพื่อดูรายละเอียด)

1-1/4", 1-1/2", or 2" Female Inlet and Outlet

Adjusting Arm Tapped 3/8"-16 Thread

Heavy Duty

Body  : AISI Grade 316 Stainless Steel

R1380 with Disc and Cup made of Viton

R1381 with Disc made of Teflon and Cup made of Viton

pdf
